R&M – Field-Mountable RJ45 Connector in Metal Housing
R&M is launching a new generation of the FM45 connector. The die-cast zinc housing also qualifies the FM45 for use in harsh environments.
R&M, the globally active developer and provider of high-end infrastructure solutions for data and communications networks based in Wetzikon, Switzerland, is expanding the range of field-mountable FM45 connectors. The development team in Wetzikon has designed a new variant with a die-cast zinc housing. The all-new all-metal FM45 is being launched as a Cat. 6A type. It is equipped with EL quick mounting technology and IDC wiring from R&M.
R&M is expanding the family of field-mountable RJ45 connectors with a full-metal version. The FM45 Cat. 6A EL with die-cast zinc housing is particularly suitable for the construction of LAN infrastructures, even in harsh environments.
The latest field-mountable RJ45 connector in metal housing ensures stable data transmission under adverse conditions. These include harsh industrial environments, rooms exposed to electromagnetic pollution, IoT connections in halls and functional buildings or outdoors. It is also suitable for continuous Power over Ethernet (PoE) operation with maximum performance. The new FM45 in metal housing bears the R&M PowerSafe seal as proof of guaranteed PoE suitability.
R&M has once again shortened the straight version of the FM45 housing. It’s only 46 millimeters long. The FM45 Cat. 6A EL is therefore also suitable for confined connection situations.
Intuitive and error-free termination
R&M provides two straight and one angled versions with the same wiring technology. The FM45 supports conventional cable diameters of five to nine millimeters.
Installers do not need any special tools for wiring with stranded wire or wire with cross-sections from AWG22 to AWG26. Termination is incredibly easy and only takes one to two minutes. It can be executed intuitively and flawlessly right from the start.
FM45 connectors simplify the construction of LAN infrastructures with flexible cable routing. With FM45, patch cords of any length can be terminated on-site. The field-mountable connectors serve as practical helpers for servicing, maintaining, and repairing local data networks. In addition, the FM45 connectors can be rewired several times over.

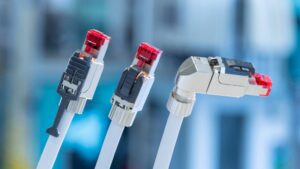

The new FM45 Cat. 6A EL is available as a standard, slim, and angled version.
More information on R&M: See the full profile on EMR Executive Services
More information on Michel Riva (CEO, R&M): See the full profile on EMR Executive Services
More information on the field-mountable FM45 connectors by R&M: https://www.rdm.com/fm45/ + Completely newly developed, state-of-the-art FM45 with metal housing, intuitive handling, robust and compact design. The R&M FM45 EL Cat.6A offers fast and easy termination. Just like the well-known EL module, it comes with a solid housing for a variety of clever field applications.
This RJ45 field-mountable plug with IDC contacts is perfectly suitable for PoE applications and carries our highly recognized PowerSafe seal. Hence, it is the first choice for classic LAN cabling or IoT.
More information on EL quick mounting technology and Cat. 6A EL by R&M: https://www.rdm.com/rj45-connection-module-cat-6a-el-with-90-cable-exit/?download=161179 + EL stands for Easy Lock. Wiring and installation are finished in a matter of minutes. For experienced installers these tasks involve only a few flicks of the wrist. All they have to do is lay the conductors in the wire guide and slide the block into the jack; then close the wiring cover and shut the strain relief clip. The Cat. 6A connection is finished.
